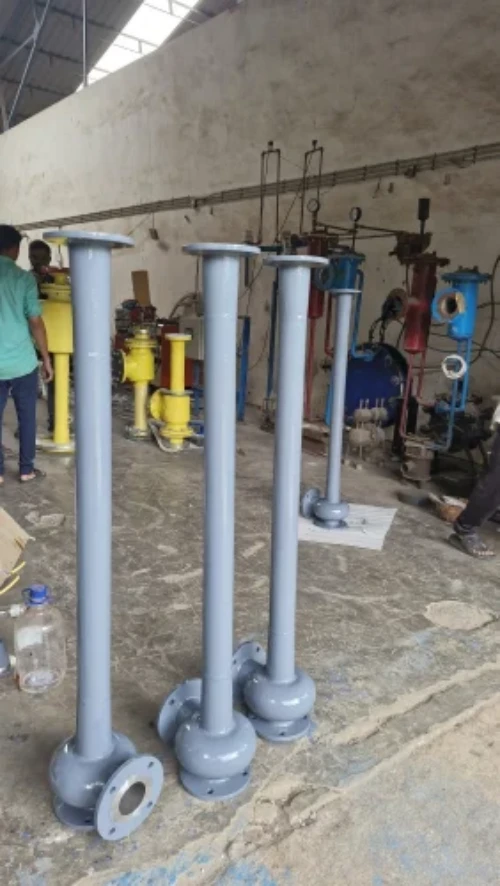

Vacuum Ejector System

Name: Vacuum Ejector System
Brand: Mechvacc Industries
Price: 12000.0 INR
Availability: InStock

Price 12000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Vacuum Ejector System Specification

Voltage
Not Applicable (Operated by pressurized motive gas/steam/air)

Mounting Type
Floor or vertical mounting with base plate/flange

Features
No moving parts, corrosion-resistant, low maintenance, robust construction, customizable sizes

Flow Rate
Customizable as per process requirement

Control System
Manual/Automated motive fluid control valve

Head Size
Available in multiple head/diffuser lengths as per design

Caliber
Customizable diameter, commonly 50 mm - 200 mm

Discharge Pressure
Atmospheric or as per system back pressure

Noise Level
<80 dB (A) for steam ejectors, <70 dB (A) for air/gas

Inlet/Outlet
Flanged ends as per ANSI/DIN/IS Standard

Max Suction
Up to 750 mmHg (10 Torr absolute); varies by model

Working Temperature
Up to 180C (subject to application)

Theory
Jet/ Ejector

Material
Mild Steel, Stainless Steel, Alloy Steel, or as specified

Structure
Jet nozzle with diffuser chamber, flanged body

Power
Not applicable (uses motive fluid energy)

Standard
Manufactured as per API/ASME/IS standards

Fuel Type
Compressed Air/Steam/Process Gas

Pressure
Design pressure up to 10 bar(g) for motive medium

Usage
Vacuum generation, evacuation of process vessels, condenser evacuation, filtration

Application
Chemical, pharma, textiles, process industries, power plants

Suction Type
Single/Multiple stages Depending on vacuum level requirement

Seals Type
No dynamic seals required

Priming
Self-priming

Pump Type
Ejector (Non-mechanical vacuum pump)

Capacity
Sized per process demand

Surface Finish
Epoxy coated or as per requirement

Nozzle Type
Converging-diverging (Venturi) custom jet nozzles

Testing
Hydrostatic and performance tested as per specifications

Installation
Easy to install and integrate with process equipment

Service Life
>10 years under standard operating conditions

Accessories
Can be supplied with dampers, silencers, and condensers

Stages
Single or multi-stage as per required ultimate vacuum

Color
Gray industrial paint (customizable)

Vacuum Ejector System Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
7 Days

About Vacuum Ejector System

Capitalise on efficiency and impeccable performance with our Vacuum Ejector System featuring custom Venturi-type converging-diverging jet nozzles. Crafted from lustrous Mild Steel, Stainless Steel, or Alloy Steel, each ejector boasts an epoxy-coated or tailored finish for robust durability. The ineffable simplicity of self-priming and non-mechanical design guarantees low maintenance and sizzling operational reliability, all while integrating seamlessly into your process equipment. Suitable for chemical, pharma, and power plants, our ejectors deliver ephemeral yet consistent vacuum generation with noise levels below 80 dB(A). Customizable sizes and configurations ensure an impeccable fit for diverse industrial needs.

Versatile Applications Across Industries

Our Vacuum Ejector System offers an ephemeral touch of efficiency across multiple surfaces of application-whether it's vacuum generation, filtration, or vessel evacuation. Its use type is non-mechanical, operating without moving parts, ensuring robust construction and capitalising on long service life. Application places include chemical processing plants, pharmaceutical manufacturing, textile production, and power generation units, where lustrous performance and seamless integration with existing process equipment are paramount for impeccable operational results.

Certifications, Delivery & Packaging

Manufactured to adhere to rigorous standards such as API, ASME, and IS, our Vacuum Ejector System carries certifications that reassure quality. Ask our team for the current asking price and quotation. We guarantee hydrostatic and performance-tested handover, with most systems delivered within 4-6 weeks from order confirmation. Packaging ensures products remain in immaculate condition during transit, using durable, custom-fitted crates or containers to suit your requirements and installation schedule.

FAQ's of Vacuum Ejector System:

Q: How does the Vacuum Ejector System operate without electric power?

A: The system utilises motive fluids such as compressed air, steam, or process gas, flowing through a converging-diverging nozzle, to create vacuum via the Venturi effect-thus requiring no electrical power.

Q: What are the advantages of using a non-mechanical vacuum ejector in process plants?

A: Non-mechanical vacuum ejectors feature no moving parts, leading to lower maintenance needs, corrosion resistance, and longevity, making them ideal for continuous industrial operations.

Q: Where can the Vacuum Ejector System be installed?

A: This system is designed for easy installation and integration with various process equipment in locations like chemical plants, pharmaceutical factories, textile mills, and power plants.

Q: When should I choose a single-stage or a multi-stage ejector configuration?

A: Choose single-stage for standard vacuum levels; opt for multi-stage ejectors where deeper vacuum or higher performance is required, as per ultimate vacuum specifications.

Q: What is the process for obtaining a quotation and delivery details?

A: Contact us with your requirements to receive a detailed quotation and asking price. Delivery is typically 4-6 weeks from order confirmation, with tested systems securely packaged for handover.

Q: How does the system handle noise control and operator safety?

A: Accessories such as silencers and dampers are available to reduce operational noise, keeping levels below 80 dB(A) for steam ejectors and under 70 dB(A) for air/gas configurations, thus supporting worker safety.
